CNC straight row cutting machine
产品详情

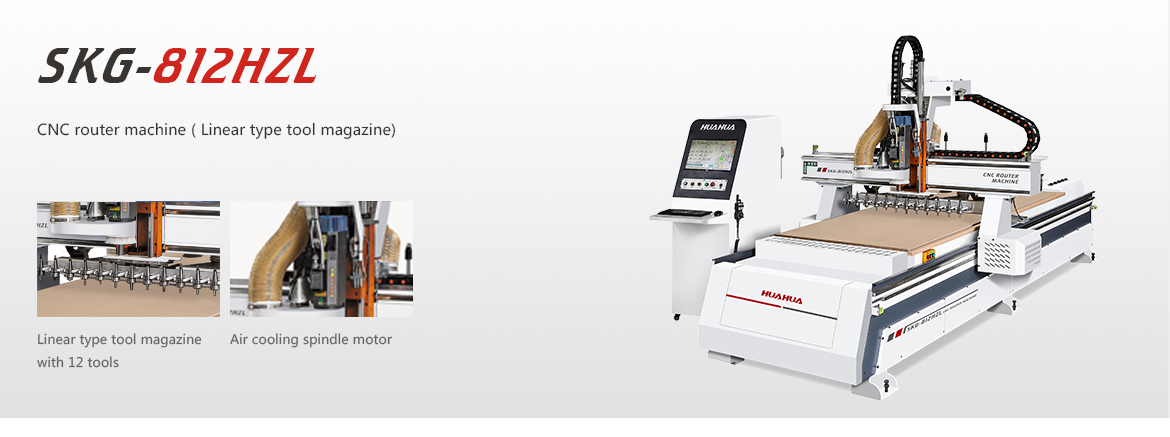

CNC straight row cutting machine

604z 大图 (en).jpg


· Aroduct feature

Independent research and development of order nesting software

Seamlessly connect with a variety of commonly used software on the market

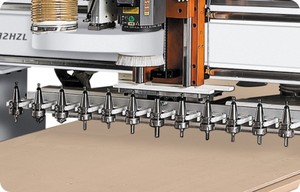

Linear type tool magazine with 12 tools, one tool for one craft, automatic tool change without waiting.

Air cooling spindle motor, with tool magazine, fast processing without waiting for tool change time, higher efficiency.



· Technical   parameters

Model
SKG-812HZL
Machine size

4368*3390*2954mm

Working area
2800*1300mm
X-axis maximum speed
60m/min
Y-axis maximum speed
60m/min
Z-axis maximum speed
20m/min
Spindle quantity
1
Drilling box power
-
Spindle power
12kw*1   24000rpm
Vacuum pump power
7.5kw air cooling
Vacuum pump air volume
250m/h
Total power
23.5kw


· Detail display

Automatic tool change tool magazineTaiwan dry vacuum pump

High precision linear transmission

guide rail

Taiwan intelligent industrial

computer control

Automatic oil injection lubrication systemCylinder pushing deviceExternal operation button , easy to operateAutomatic tool alignment system


· Process analtical



1.Auto loading

The large board on the lifting table is automatically pulled to the position with positioning device by the suction cup of the machine for processing



2.Horizontal drilling

The upper drilling box can automatically adjust the diameter of the drill bit according to the NC file and drill at the specified position


3.Flexible cutting

The cutter can cut, groove and mill the board according to different processing technology


4.In-line cutting machine

Can automatically pick up the tool magazine, the number of tool magazines can be customized according to the customer's requirements


5.The automatic tool setting

Automatically corrects all the tool lengths, it is more intelligent and simple


6.Automatic unloading

Push the finished plates to the unloading table and clean the remaining dust on the working table


· Customer site

Customer siteCustomer site
Customer siteCustomer site
