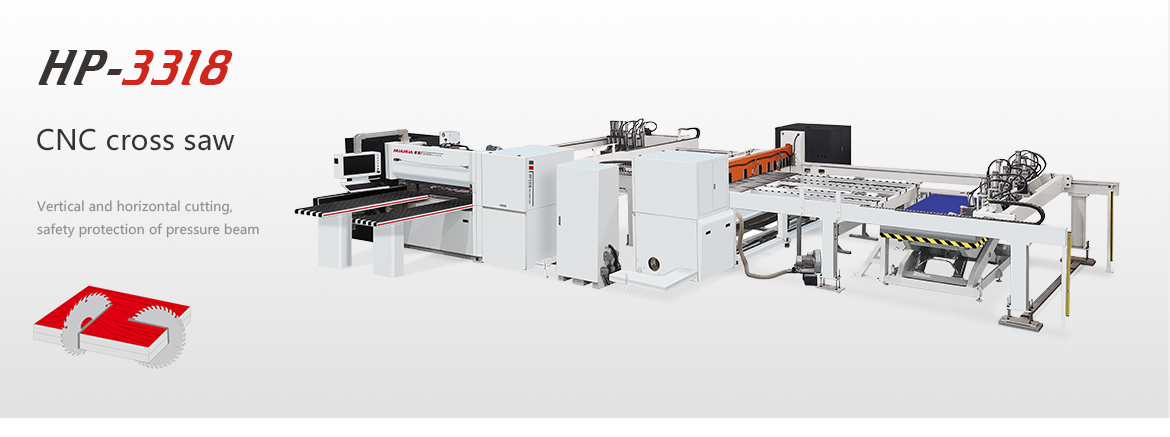

CNC cross saw HP3318
产品详情


CNC cross saw280.jpg

· Aroduct feature

Saw carrier speed can be adjusted from 0-120m/min Maximum cutting thickness up to 90mm

Maximum slitting length is 3300mm, maximum crosscutting length is 1800mm

One horizontal and one vertical cutting twice, forming the plate in one time

It can be opened by a single sheet, multiple sheets can be stacked, and the efficiency of batch cutting has doubled


· Technical   parameters

Model
HP-3318
Model
HP-3318
  Max.cutting length300MM

Max.cutting length
1800MM
Saw carriage drive motor
2kw
Max.cutting thickness
90mm
Automatic feeding motor
2kw(AC伺服)
Main saw blade diameter
φ380/400mm
High-pressure blower motor
3kw*3
Main saw shaft diameter
φ60mm
Total power
61.6kw
Main saw shaft rotation speed
3800rpm
Automatic feeding speed
85m/min
Scoring saw blade diameter
φ180mm
Air pressure
5-7kg/cm2
Scoring saw shaft diameter
φ30mm
Worktable height
960mm
Scoring saw shaft rotation speed
5200rpm
Net weight
14300kg
Saw carriage forward speed
100m/min
Machine size(l*w*h)
8000*11600*2200mm
Saw carriage backward speed
120m/min
Packing size(l*w*h)
-
Main saw motor
16kw*2
Number of air floats
2
Scoring saw motor
2.2KW



· Detail display

HP系列.png· Process analtical


1.Optimization cutting plan

intergation with cutting list, reasonable automatic optimization cutting plan



2.Manual feeding

Move the board from lifting table to feeding gripper for position



3.Clamping and feeding

Feeding gripper pulls the board into the specified position in the machine


4.Automatic side aligning

Side wheels position the board from the side tightly



5.Automatic press panel

Press beam automatic press panel flatly


6.Dustproof plate

Prevent offcut and dust splashing outwards


7.Precision cutting

Effientand high speed cutting


8.Automatic output

Cut according to the size set by the program and send out automatically



· Customer site

Customer siteCustomer site
Customer siteCustomer site
