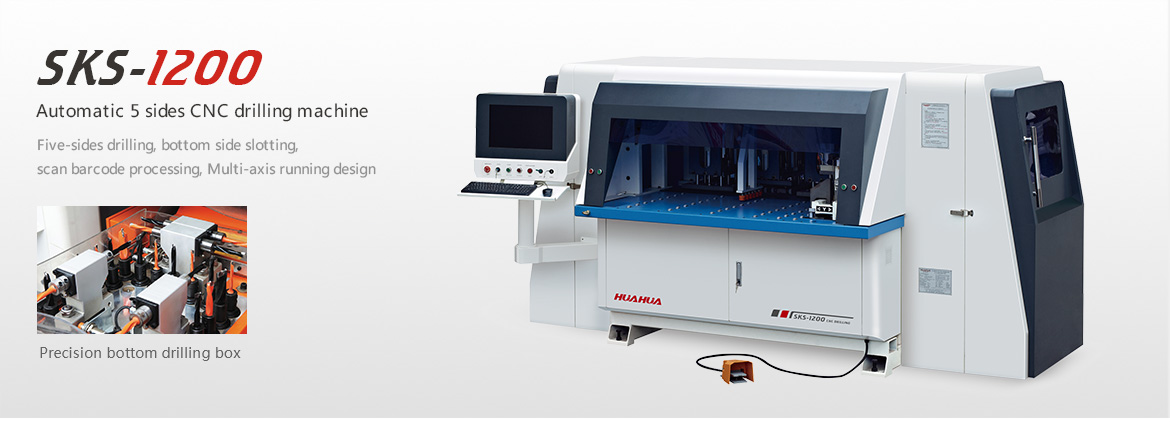

Automatic 5 sides CNC drilling machine SKS-1200
产品详情


Automatic 5 sides CNC drilling machine



· Aroduct feature

Model
SKH-612
Model
SKH-612


Axis travel &
maximum
positioning speed
X aixs
580mm &  85m/min
Processing
size range
Panel maximum  width
1200mm

Y aixs
1680mm &  60m/min

Panel minimum  width
50mm

Z aixs
82mm &  20m/min

Panel maximum  length
2700mm

U aixs
4580mm &  85m/min

Panel minimum  length
200mm

V aixs
1400mm &  60m/min

Panel maximum  thickness
48mm

W aixs
118mm &  20m/min

Panel minimum  thickness
12mm

A aixs
1260mm &  35m/min

Working table  height
1020mm
Drilling box
configuration
Vertical drilling  bit
12(X轴方向)+13(Y轴方向)
Other parameters
Total power
17kw

Horizontal drilling  bit
2(X轴方向)+2(Y轴方向)

Working voltage
380V/50Hz

Drilling box motor  speed
3400rmp(r/min)

Operation  pressure
-

Spindle power
2.2kw

Weight
3200kg
Milling spindle*2
Tool shank  diameter
-

Overall size
28400x5670x2200mm

Spindle speed
-

Machine working  size
2840x5790x2200mm

Spindle motor  power
-

Panel maximum  width
1200mm


· Detail display

Precision bottom drilling  boxAutomatic compression  anti-jump deviceHigh  torque helical gear reducerPrecision bottom drilling  box
Pneumatic clamping feeding  deviceRoller assistance transfer  tableAir floating feeding  platformAutomatic oil injection  lubrication system


· Process analtical




1.Automatic feeding

Double mainpulator  automatic clamping panel tight and feeding to machine  processing




2.Drilling  horizontal holes

Drilling box horizontal  drilling bits automatic processing four sides holes





3.Drilling vertical holes

Upper and bottom  drilling boxs vertical drilling bits automatically processing panel upper  side and bottom side vertical holes respectively




4.Auto side aligning  device

According to panel size  automatically aligning panel side tighten, can detection panel width,  avoid misplaced panel.




5.Irregular shape processing

According to the slot  information automatic make slot, cutting and modelling  function.




6.Automatic unloading

Can choose workpiece  back side unloading. automatically deliver panel to unloading  device


· Customer site

Customer siteCustomer site
Customer siteCustomer site


name
*
E-mail
*
Message
*
Verification code
 Change Image
*
Submit
