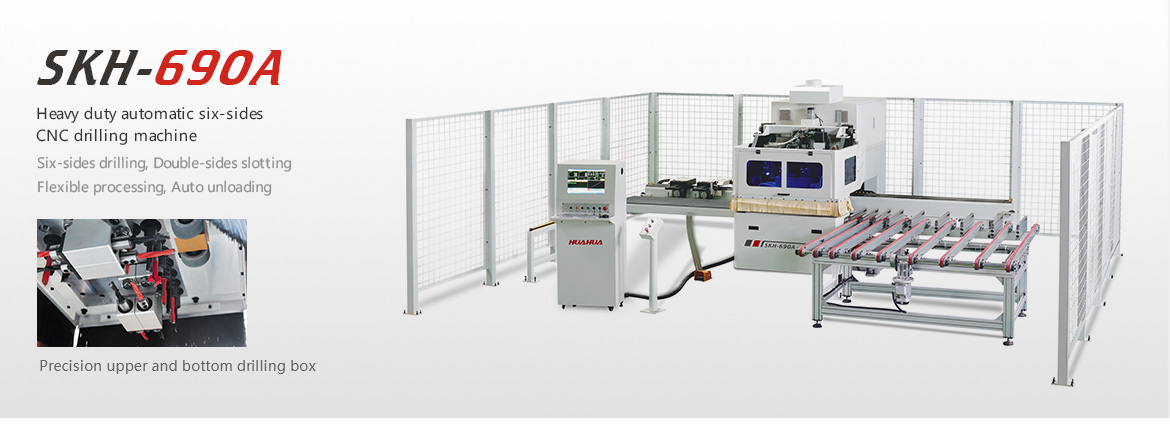

Heavy duty automatic six-sides CNC drilling machine SKH-690A
产品详情


Heavy duty automatic six-sides CNC drilling machine




· Aroduct feature

Model
SKH-690A
Model
SKH-690A


Axis travel &
maximum
positioning speed
X aixs
4250mm & 113m/min
Processing
size range
Panel maximum width
1000mm

Y aixs
870mm & 50m/min

Panel minimum width
50mm

Z aixs
90mm & 12m/min

Panel maximum length
2700mm

U aixs
4250mm & 113m/min

Panel minimum length
220mm

V aixs
90mm & 12m/min

Panel maximum thickness
70mm

W aixs
90mm & 12m/min

Panel minimum thickness
10mm

A aixs
-

Panel maximum width
880mm
Drilling box
configuration
Vertical drilling bit
22(X)+24(Y)
Other
parameters
Working table height
25.05kw

Horizontal drilling bit
8(X)+6(Y)

Total power
380V/50Hz

Drilling box motor speed
3400rmp(r/min)

Working voltage
0.65-0.8Mpa

Spindle power
6kw

Operation pressure
4000kg
Milling
spindle*2
Tool shank diameter
φ10 or 1/2

Weight
4800x2400x2600mm

Spindle speed
12000-24000RMP(r/min)

Overall size
6800x5450x2600mm

Spindle motor power
9kw

Machine working size
1000mm


· Detail display

Precision bottom drilling  boxAutomatic compression  anti-jump deviceHigh  torque helical gear reducerPrecision bottom drilling  box
Pneumatic clamping feeding  deviceRoller assistance transfer  tableAir floating feeding  platformAutomatic oil injection  lubrication system


· Process analtical




1.Automatic feeding

Double mainpulator  automatic clamping panel tight and feeding to machine  processing




2.Drilling  horizontal holes

Drilling box horizontal  drilling bits automatic processing four sides holes





3.Drilling vertical holes

Upper and bottom  drilling boxs vertical drilling bits automatically processing panel upper  side and bottom side vertical holes respectively




4.Auto side aligning  device

According to panel size  automatically aligning panel side tighten, can detection panel width,  avoid misplaced panel.




5.Irregular shape processing

According to the slot  information automatic make slot, cutting and modelling  function.




6.Automatic unloading

Can choose workpiece  back side unloading. automatically deliver panel to unloading  device


· Customer site

Customer siteCustomer site
Customer siteCustomer site
