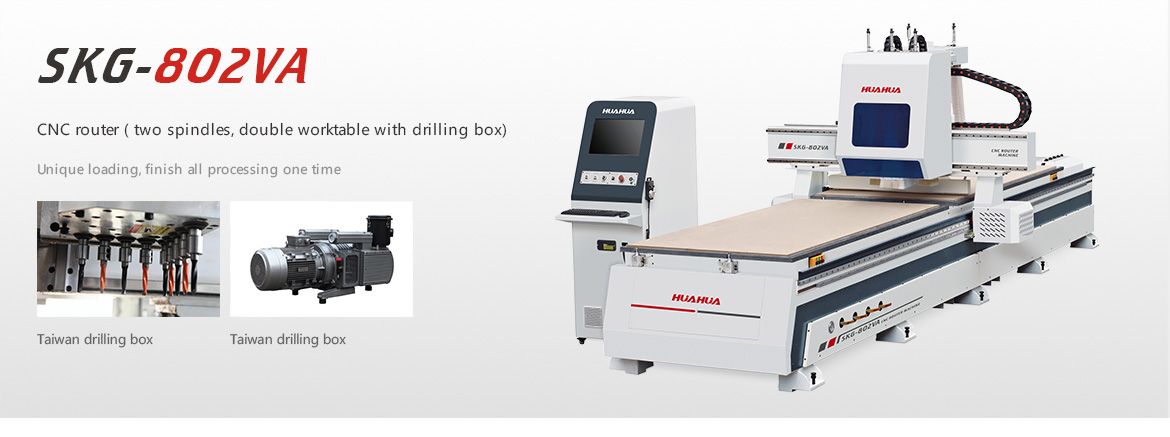

CNC router( two spindles, double worktable with drilling box)
产品详情


CNC router ( two spindles, double worktable with drilling box)




· Technical  parameters

Model
SKG-802VA
Working area
2500*1300mm*2
X-axis maximum speed
80m/min
Y-axis maximum speed
80m/min
Z-axis maximum speed
20m/min
Spindle quantity
2
Drilling box power
2.2kw
Spindle power
6kw*2 1800rpm
Vacuum pump power
7.5kw air cooling
Vacuum pump air volume
250m/h
Total power
26.3kw


· Detail display

Taiwan drilling boxTaiwan dry vacuum pump

High precision linear transmission

guide rail

Taiwan intelligent industrial

computer control

Automatic oil injection lubrication systemCylinder pushing deviceExternal operation button , easy to operateAutomatic tool alignment system


· Process analtical



1.Auto loading

The large board on the lifting table is automatically pulled to the position with positioning device by the suction cup of the machine for processing



2.Horizontal drilling

The upper drilling box can automatically adjust the diameter of the drill bit according to the NC file and drill at the specified position


3.Flexible cutting

The cutter can cut, groove and mill the board according to different processing technology


4.Automatic change tool

Can automatically pick up the tool magazine, the number of tool magazines can be customized according to the customer's requirements


5.The automatic tool setting

Automatically corrects all the tool lengths, it is more intelligent and simple


6.Automatic unloading

Push the finished plates to the unloading table and clean the remaining dust on the working table


· Customer site

Customer siteCustomer site
Customer siteCustomer site
