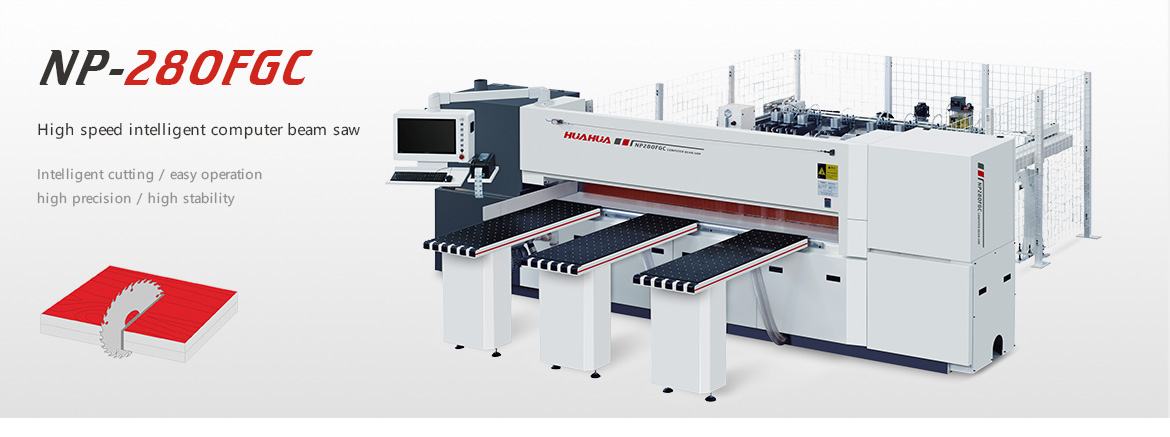

High speed intelligent computer beam saw
· Aroduct feature
Saw carrier speed can be adjusted from 0-100m/min Maximum cutting thickness up to 100mm
The working table adopts 22mm one-piece plate processing,
closed inner frame structure, half-year aging treatment, and heat treatment frame to
ensure the stability of the main body and the service life of the machine.
The industrial control PC and design software are optional, intergation with optimizer software prefectly.
The human-machine interface is simple and friendly, the operation is convenient and reliable.
· Technical parameters
Model | NP-280FGC | Model | NP-280FGC |
Max.cutting length | 2780MM | Saw carriage drive motor | 2.2kw |
Max.cutting thickness | 100mm | Automatic feeding motor | 1kw(AC伺服) |
Main saw blade diameter | φ380/400mm | High-pressure blower motor | 3kw |
Main saw shaft diameter | φ60mm | Total power | 22.2kw |
Main saw shaft rotation speed | 4000rpm | Automatic feeding speed | 100m/min |
Scoring saw blade diameter | φ180mm | Air pressure | 5-7kg/cm2 |
Scoring saw shaft diameter | φ30mm | Worktable height | 960mm |
Scoring saw shaft rotation speed | 6900rpm | Net weight | 4500kg |
Saw carriage forward speed | 100m/min | Machine size(l*w*h) | 5300*6300*2100mm 5800*6300*2100mm |
Saw carriage backward speed | 150m/min | Packing size(l*w*h) | 5700*1750*2100mm |
Main saw motor | 16kw | Feeding frame(l*w*h) | 4100*600*2100mm |
Scoring saw motor | - |
|
|
· Detail display
 |  |  |  |
| Air floating table | Pneumatic clamping | Precision oil injection system | Side aligning motor |
 |  |  |  |
| label printer | Side aligning device | Roller conveyor | High precision automatic feeding |
· Process analtical
 | 1.Optimization cutting plan intergation with cutting list, reasonable automatic optimization cutting plan
|  | 2.Manual feeding
Move the board from lifting table to feeding gripper for position
|
 | 3.Clamping and feeding Feeding gripper pulls the board into the specified position in the machine |  | 4.Automatic side aligning
Side wheels position the board from the side tightly
|
 | 5.Automatic press panel
Press beam automatic press panel flatly |  | 6.Dustproof plate
Prevent offcut and dust splashing outwards |
 | 7.Precision cutting Efficient and high speed cutting |  | 8.Automatic output Cut according to the size set by the program and send out automatically
|
